[Series EPC] Bakery Oven 10 Trays
EPC-1021E3: Maximized Capacity for Bakery and Pastry

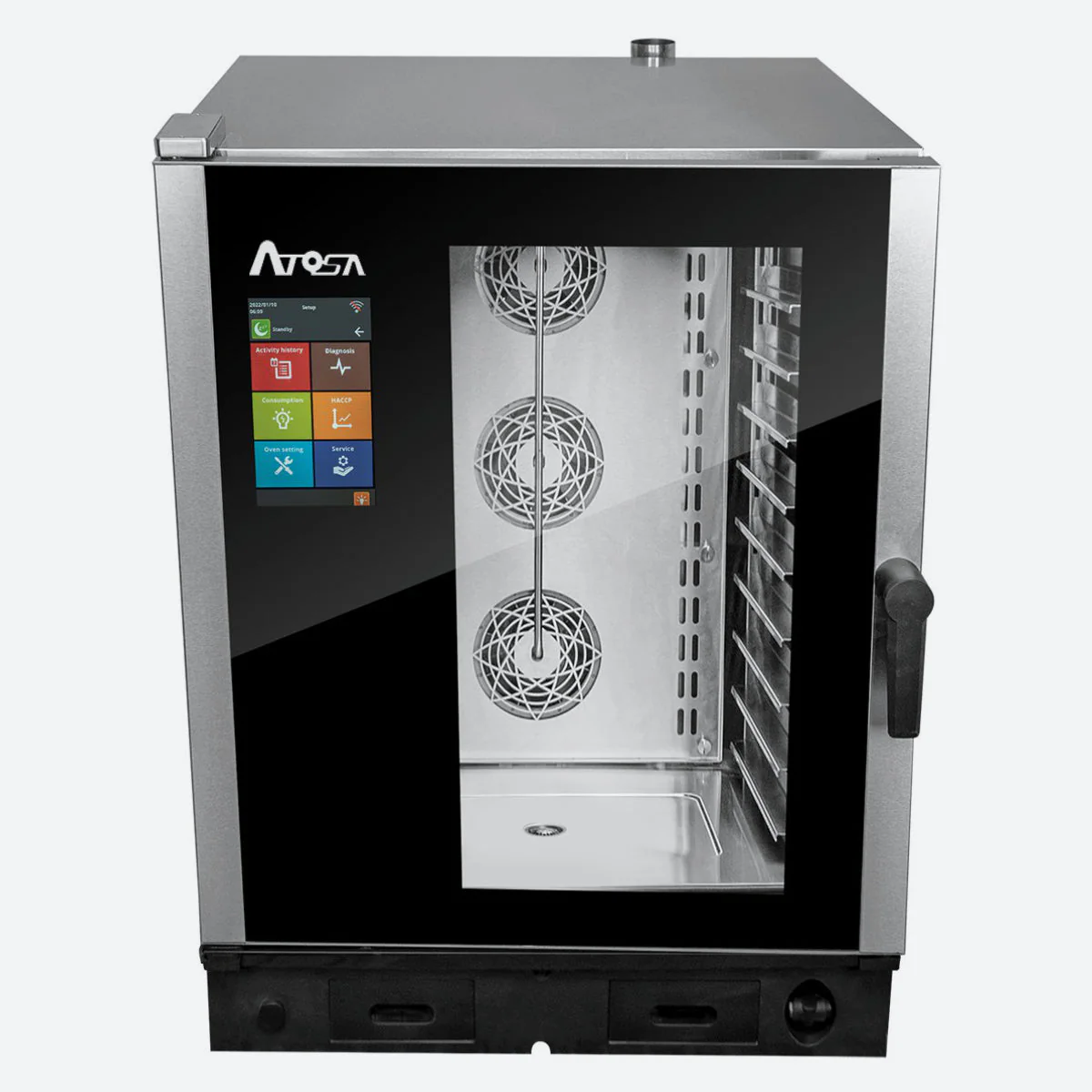

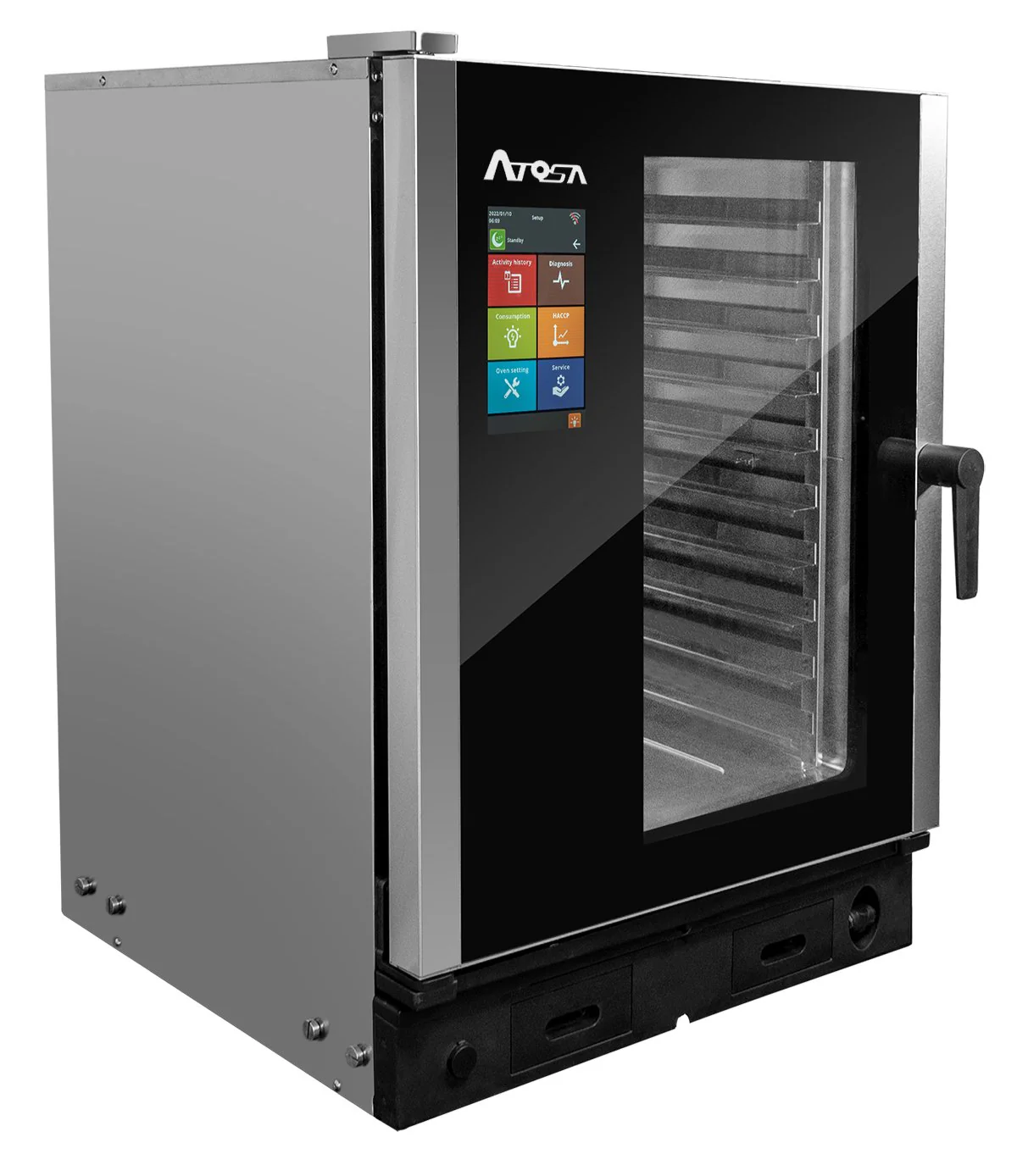

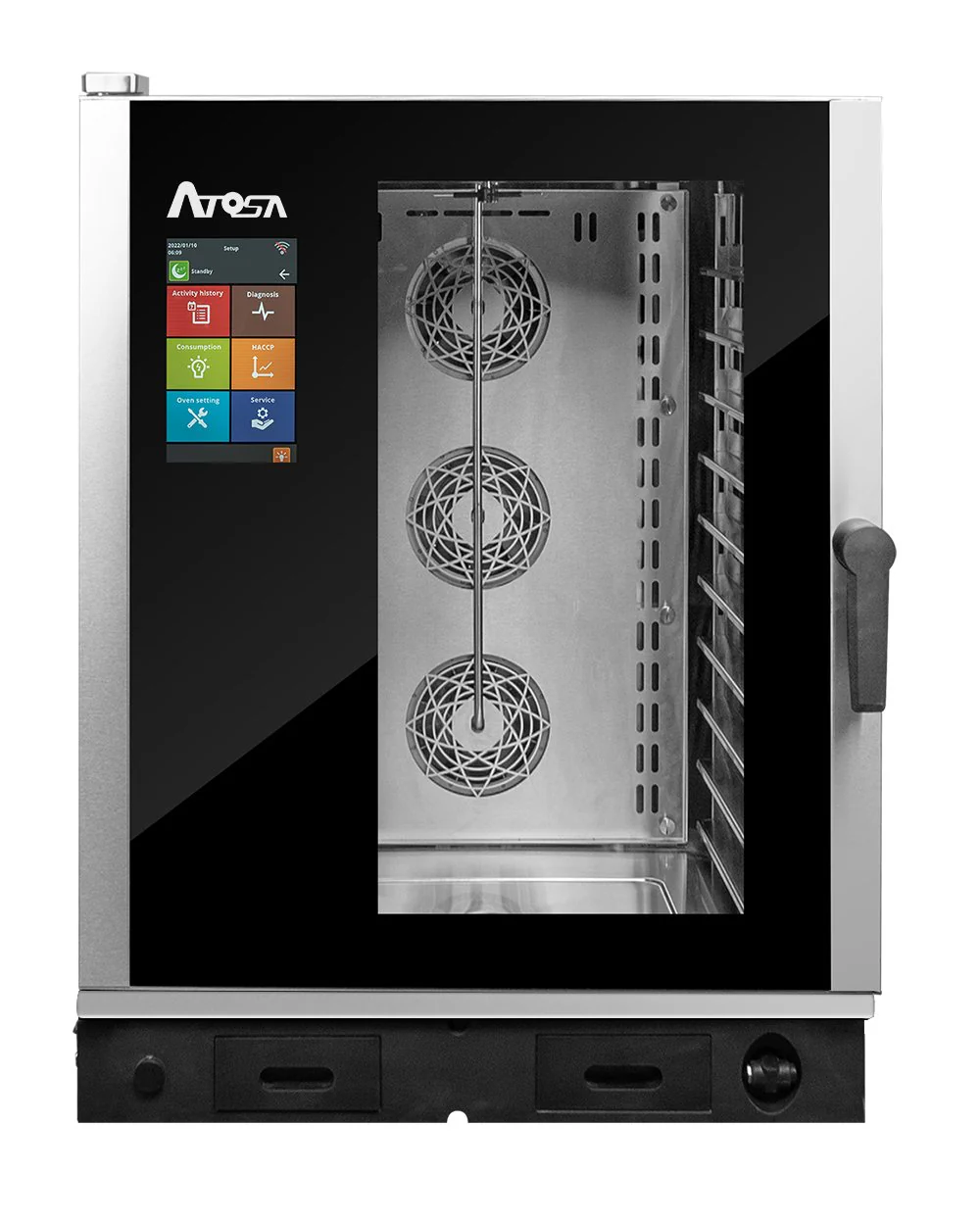

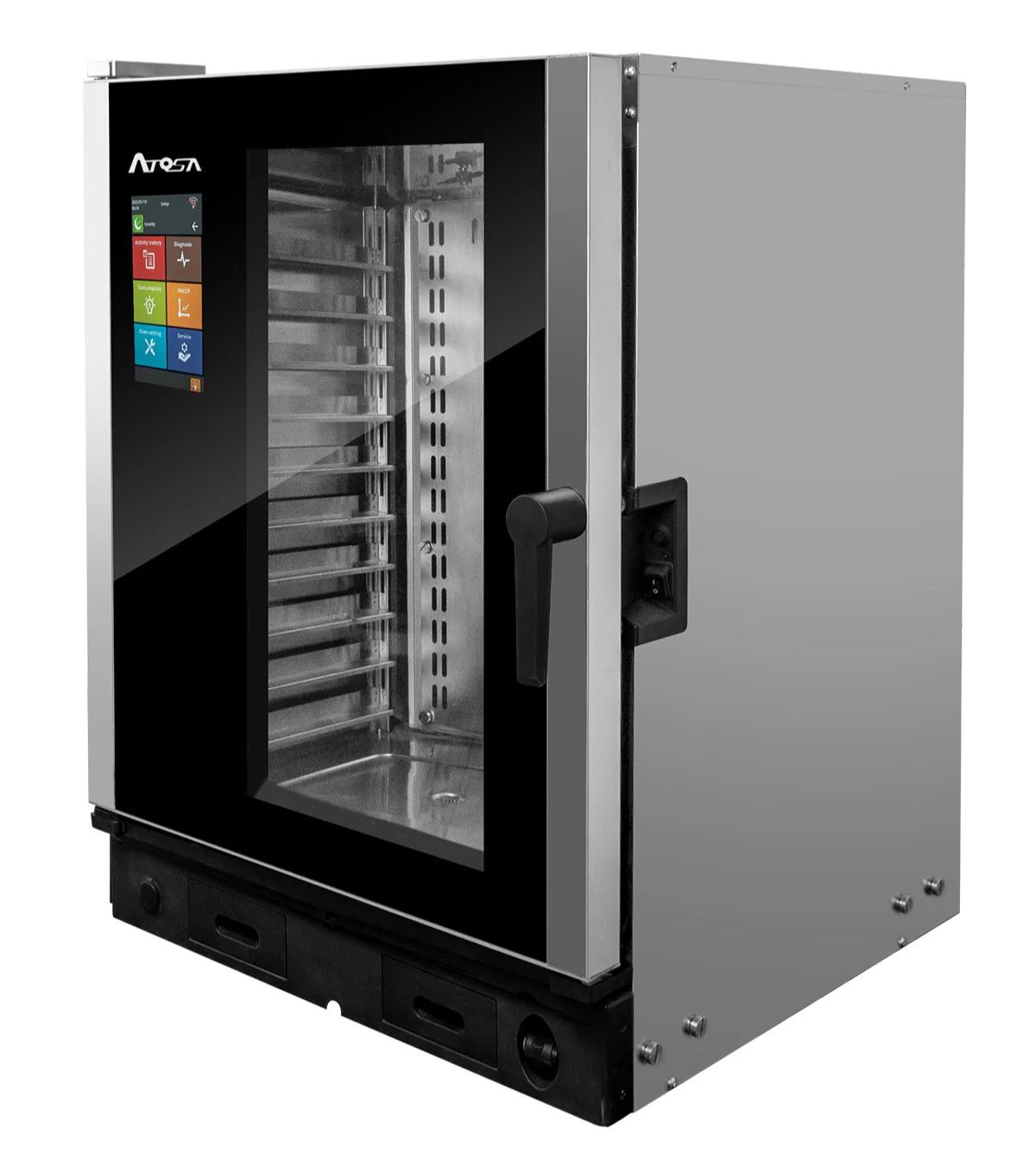

The COMBI OVEN EPC-1021E3 oven, with a generous configuration of 10 EN 400×600 trays (also compatible with GN 2/1), is the ideal choice for large businesses in the field of bakery and confectionery. Designed for large-scale performance, this model ensures flawless results regardless of production volume.
Top Performance for Bakery Products
The EPC-1021E3 is specially designed to meet the high demands, offering:
- Fresh and evenly baked bread , with a perfect texture and crispy crust.
- Delicate pastries , from golden croissants to fluffy muffins.
- Premium desserts , cooked evenly, with perfect appearance and taste.
Its extended capacity of 10 trays allows the simultaneous preparation of large quantities of products, saving time and resources.
Ideal for Large Capacity Professional Kitchens
This model is suitable for:
- High-volume bakeries that require uniform baking on an industrial scale.
- Renowned confectioneries and pastry shops , which emphasize consistency and quality.
- Catering or mass production services that require maximum efficiency.
Superlative Technology and Energy Efficiency
The EPC-1021E3 is equipped with modern technologies for precise temperature and humidity adjustment, ensuring high energy efficiency. The intuitive control panel and durable materials make it a reliable and easy-to-use oven in the most demanding kitchens.
| EXEMPLARY | EPC-1021E3 |
| QUANTITY OF TRAYS | 10 |
| TRAY SIZE (mm) | GN 2/1 / EN400x600 |
| DISTANCE BETWEEN TRAYS (mm) | 82 |
| GRID LOAD (Kg) | 36 |
| MAXIMUM LOAD (Kg) | 300 |
| CHAMBER CAPACITY (L) | 319 |
| tension | 380-415 Vac (400V nominal) 3ph+N+PE |
| FEEDING FREQUENCY | 50 – 60 Hz |
| RATED POWER | 25.5 kW at 380 V, 30.2 kW at 415 V |
| MAXIMUM CURRENT PER PHASE (A) | 49 A |
| MINIMUM POWER CABLE SECTION | 5G10 mm² (H07RN-F) |
| PROTECTION CLASS | IPX4 |
| INNER DIAMETER OF DRAIN PIPE (mm) | 32 |
| OUTER DIAMETER OF EXHAUST PIPE (mm) | 60 |
| OPERATING TEMPERATURE RANGE | 30°C – 260°C |
| IDEAL INLET WATER PRESSURE | 2-3 bars |
| REQUIRED WATER HARDNESS | <8°d (dH) |
| WATER CONNECTION | Supply hose with ¾” connection |
| PRODUCT DIMENSIONS (mm) L×D×H | 908×1080×1224 |
| PACKAGING DIMENSIONS (mm) L×D×H | 985×1160×1365 |
| NET WEIGHT (Kg) | 197.6 |
| GROSS WEIGHT (Kg) | 251.6 |
